Though often overlooked, server backplanes are a crucial component of IT infrastructure, responsible for the physical and logical connection of drives to the RAID controller or HBA. They determine how many drives you can support, at what speed data will flow, and whether you'll harness the full potential of your storage – regardless of whether you're working with classic SAS/SATA or modern NVMe PCIe 4.0. Hardware Direct offers dozens of backplane models for Dell, HPE, and Supermicro platforms – including passive and active models with SAS expanders, as well as hybrid solutions supporting various protocols simultaneously. These solutions allow not only for infrastructure expansion but also its rational utilization – without replacing the entire server.

Choosing the right backplane isn't just about the number of bays. Equally important are the interface type, supported bandwidth, and the form of connection to the motherboard and RAID controller.

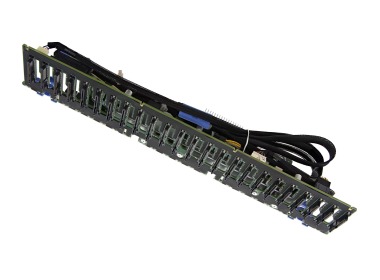

Passive models, such as the Dell R710 8x2.5" MX827, offer simple communication with SAS/SATA 2.5" drives without built-in logic – they're inexpensive, reliable, and sufficient for smaller environments. However, when you need greater scalability and better I/O traffic management, it's worth opting for an active backplane with an expander, like the Dell R730xd 24x2.5" 2RRVJ, which supports up to 24 bays and ensures dynamic SAS signal distribution. Another option is hybrid solutions, such as the Dell R650 NVMe 2x2.5", supporting PCIe 4.0 and ideal for environments with U.2 drives. The choice, therefore, depends not only on your budget but primarily on the planned workload, drive type, and whether you prioritize performance, reliability, or future expandability.

Hardware Direct's offer includes a full range of models – from classic solutions for Dell PowerEdge T430/T630 and R720/R730, through newer NVMe backplanes for the R650, to dedicated systems for HPE DL380 Gen9/Gen10 or BL460C series blade servers. For file environments and small NAS systems, the Dell R230/R330 4x3.5" is a good choice – an inexpensive and sufficient passive model supporting 4-8 drives. For larger environments – such as virtualization, backup, or Big Data systems – backplanes with an expander, like the Supermicro SAS3-826EL1 with support for 24 SAS3 drives, will be a much better choice. For modern convergent configurations (e.g., PowerEdge VRTX), a specialized V38K3 backplane for 25 bays is available – ready for demanding systems with data redundancy and multiple controllers. Regardless of the model, every product in the store is described with dimensions, number of bays, connector type, and dedicated server series – eliminating the risk of error.

Upgrading a backplane is one of the simplest ways to breathe new life into an older server or prepare a platform for modern data storage. Replacing a passive model with an active SAS 12G expander provides a real increase in I/O throughput, allows for larger RAID arrays, and reduces controller load. For Dell R720/R730 series servers or HPE DL380 Gen9 – this upgrade costs less than 300 PLN and can extend the platform's lifespan by several years. For environments transitioning to NVMe, changing the backplane to a PCIe 4.0 compatible one (e.g., Dell R650) allows for full U.2 SSD performance – without replacing the motherboard or the entire chassis. It's a cost-effective and safe way to boost parameters without rebuilding your infrastructure. And if you have a server from 2010–2014? Hardware Direct also offers compatible SAS2/SATA backplanes for older DL180, R610, DL160, allowing you to maintain a working environment without investing in new systems.
